Hinged systems / M11000

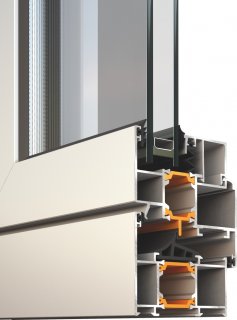

M11000 is a versatile system for any kind of thermal insulated doors and windows, which can meet the most demanding needs, thanks to the large range of solutions and profiles. The system can create all kind of typologies regarding hinged frames and offers the following benefits:

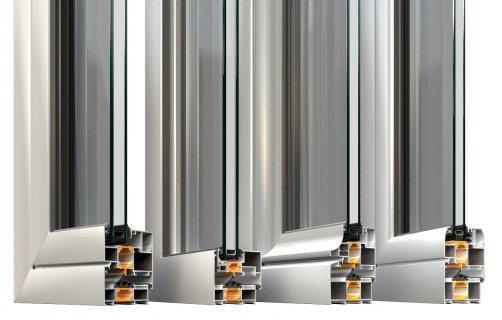

  • Variety of designs (flat, curved, inclined, classic) and alternatives for every need of architectural design with a vast collection of profiles
  • Concealed window typologies (single and double) for more natural lighting
  • Both European groove and PVC groove hardware can be applied
  • WK 3 anti-burglar protection
  • Special profiles available for any typology of entrance doors
  • Pivot windows typology

Frame depth 62,5 mm
Sash depth 70 mm
Minimum visible face width 86 mm
Minimum visible width (Τ-profile) 70 mm
Sash mechanism weight limit 130 kg
Glass thickness up to 44 mm
Cross section thickness 1,1 - 1,6

Type of system Insulated
Uf from 2,1 up to 3,1 W/m2K
Exterior aesthetics Flat, Inclined, Curved, Classic
Glazing method Glazing Bead

Type of thermal insulation 24mm polyamide
Mechanism European Groove, Pvc Steel 16 mm

Single & double Tilt & Turn
Single & double Tilt & Turn outwards
Single-leaf entrance door inwards & outwards
Double leaf entrance door inwards & outwards
Projected outwards
Folding doors
Single, double, triple & quadruple leaf hinged shutter
