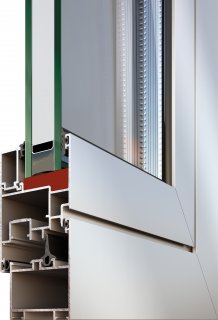

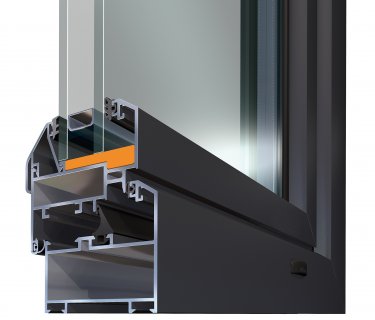

Hinged systems / M15000

is a non thermal -break system for windows, entrance and patio doors that includes a vast range of solutions, which ensure the following characteristics:

  • Variety of designs (softline, flat, inclined, classic)
  • Tilt & turn windows and patio doors (inwards & outwards)
  • Offers concealed window typologies (single and double)
  • Anti-Panic doors
  • Smoke proof doors
  • Swing doors
  • Horizontal or vertical pivot windows and patio doors


Frame depth 50 mm
Sash depth 84 mm
Minimum visible face width 137 mm
Minimum visible width (Τ-profile) 70 mm
Sash mechanism weight limit 130 Kg
Glass thickness 24 - 40 mm
Cross section thickness 1,6 - 2,5


Type of system Uninsulated
Uf 7 W/m2k

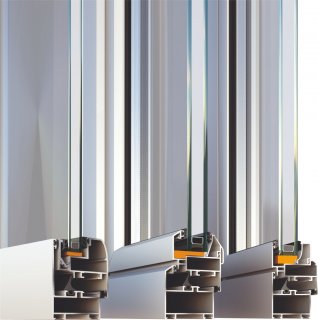

Exterior aesthetics Flat, Curved, Inclined, Classic
Glazing method Glazing Bead
Type of thermal insulation 34 mm polyamide
Mechanism European Groove, Pvc Groove Steel 16 mm


Single & double tilt & turn window
Single & double leaf entrance door, inwards and outwards.
Single, double, triple & quadruple leaf hinged shutter
