Sliding systems / S560



S560
is a robust lift & sliding system that provides high level of thermal insulation, flexibility in construction and is ideal for large openings. S560 offers flexibility given that it helps building windows & doors for small or very large spans. It offers quality constructions because of the profiles’ stiffness and enables both internal and external "framing" for a stronger connection of the profiles.

  • Sash depth: 56mm
  • Smooth and easy sliding thanks to inox rails
  • Lift & sliding mechanism for sashes of 90, 150 & 300 Kg
  • Optional multi-locking mechanism can be installed
  • High level of thermal insulation: Uf from 2,2 to 4,6 W/m2K
  • Covers all typologies of sliding systems

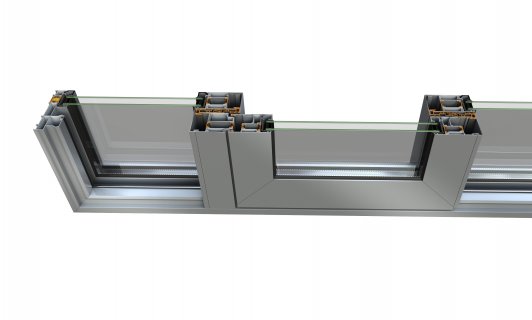

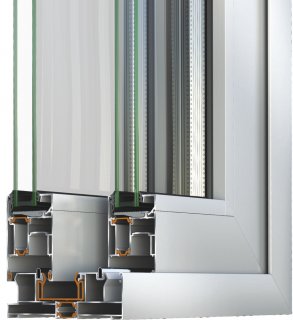

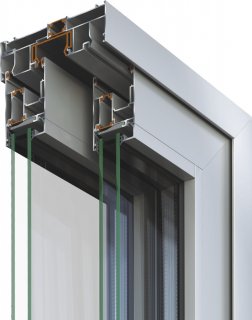

PROFILES CHARACTERISTICS

Frame width 128 mm
Sash width 56 mm
Minimum visible height of construction 122,5 mm
Frame height(rail) 45 mm
Sash height 86 mm
Sash mechanism weight limit 90,150 and 300 Kg
Maximum glass thickness From 24 to 38mm
Cross section thickness up to 2 mm

SYSTEM CHARACTERISTICS

Type of system Insulated
Uf from 2,2 to 4,6 W/ m2K
Exterior aesthetics Flat
Sliding Type Slide
Type of thermal insulation 24mm polyamide into the frame, 16-24 mm into the sash
Mechanism GU 939, 937, 934

Typologies

Double and triple horizontal sliding sash
Four sash horizontal meeting stile sliding doors
Sliding doors with fixed lights
Sliding doors with fixed lights right & left and uplifting sash in the middle
