Sliding systems / M23300

is one of Alumil's premium solutions for lift & sliding window and patio doors, which is ideal for luxurious constructions with large spans. It also has the ability to vent weights up to 250kg, incorporates stainless steel rails for smoother scrolling and supports glazing up to 28mm.

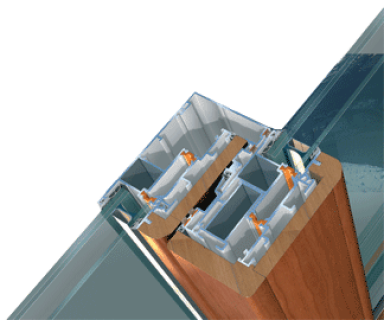

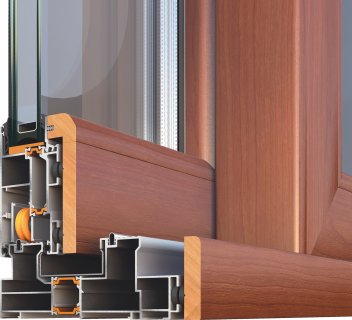

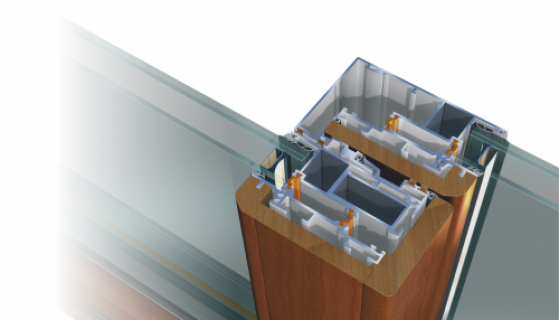

The system elegantly combines the top quality of aluminium with the leading aesthetic style of wood. The connection of aluminium and wood is achieved with special clips which allow air circulation for avoiding corrosion from water condensation.

  • Sash depth of 73,5mm
  • Smooth and easy scrolling of the sashes by using stainless steel rollers in combination with stainless steel rails
  • Typology of fix and uplifting sliding and two leaf uplifting sliding


Frame width 158,5 mm
Sash width 73,5 mm
Minimum visible height of construction 156 mm
Sash mechanism weight limit 250 Kg
Maximum glass thickness 28 mm (only)
Cross section thickness up to 2,6


Type of system Insulated
Uf from 3,2 W/m2K
Exterior aesthetics Flat
Sliding Type Up Lifting
Type of thermal insulation 8, 14, 24 mm polyamide
Mechanism GU 934

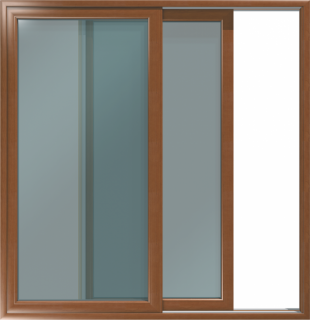

Double horizontal sliding sash
Single sliding with fixed light
